Cone Penetrometer and Piezometer-Cone Penetrometer.

Several types of cone penetrometers are in use, including the mechanical cone, mechanical-friction cone, electric cone, electric-friction cone, and piezometer cone. The mechanical cone has a 60 point angle and a 1.406-in. base diameter. The cone is attached to hollow drill rods and may be pushed down about 3 in. by push rods inside the hollow drill rods while measuring the push force. The mechanical-friction cone has a point of the same size as the mechanical cone and, in addition, includes a sleeve that will be engaged
and pulled down after the cone has been pushed down. Two resistances are measured, the resistance from the cone only and the resistance from the cone and the friction sleeve. Sketches of the friction-cone penetrometer are shown in Figure 4.8.

The electric-cone penetrometer has a cone the same size as the mechanical cone, but the resistance to penetration is measured by a load cell at the top of the penetrometer. Readings are taken by an electrical conduit coming to the ground surface. The electric-friction-cone penetrometer is similar to the
electric-cone penetrometer, but two measurements on resistance are taken as the device is pushed into the soil. Load cells from strain gauges allow the cone resistance and the friction-sleeve resistance to be measured simultaneously. Sketches of the electric-cone penetrometer and the electric frictioncone penetrometer are shown in Figures 4.9 and 4.10, respectively.

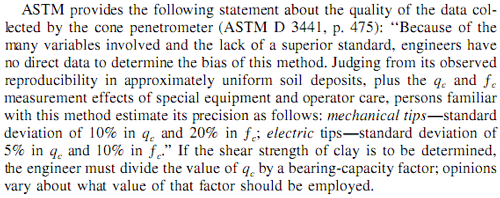

The piezometer-cone penetrometer combines the electric cone with a piezometer that can be read electronically. In addition to yielding the cone resistance, the device gives information on the value of the porewater pressure at the depth of the test. The additional information gives the engineer a way to predict more accurately the characteristics of the stratum being investigated.
